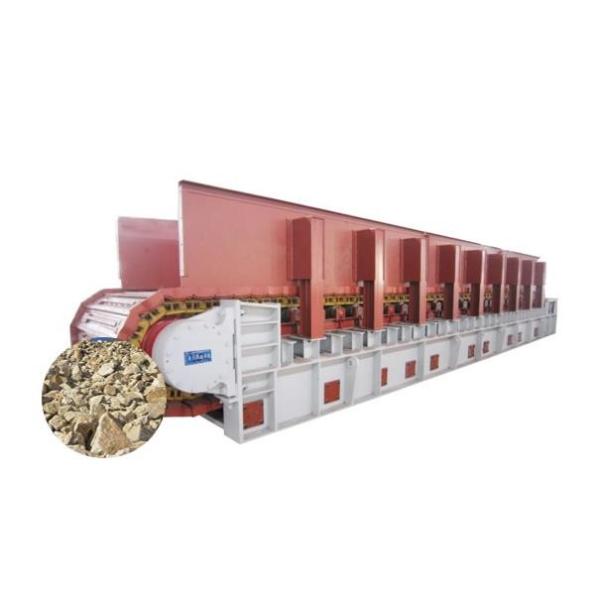

Customized Limestone Apron Plate Feeder Run Smoothly Scientific Structure

Name: Customized Limestone Apron Plate Feeder Run Smoothly Scientific Structure
Brand: BENO
Price: 71 USD

China Customized Limestone Apron Plate Feeder Run Smoothly Scientific Structure wholesale

Brand Name : BENO

Model Number : XCBW1208

Certification : CE, ISO9001

Place of Origin : Sichuan, China

MOQ : 1 set

Price : USD 71,726.03-84,451.61 one set

Payment Terms : L/C, T/T

Supply Ability : 200 sets / year

Delivery Time : 35 days

Packaging Details : Simple package

transport materials : Coal, Limestone, Granite, etc.

chain plate width : 1200 mm

plate chain length : 8000 mm

chain speed : 0.05-0.2 r/min

power : 18.5 KW

weight : 23.8 t

Contact Now

Customized Apron Plate Feeder Run Smoothly Scientific Structure

Device Information

1. The output is 120-280 tons per hour.
2. The weight is 23.8 tons.
3. The width of chain plate is 1200 mm, and the length of chain is 8000 mm.
4. The chain speed is 0.05-2 rpm.
5. The motor power is 18.5 kW.

About Equipment Operation

1. The drive chain adopts the standard dry crawler chain produced by professional manufacturers, which does not need lubrication and is easy to install and maintain.

2. There are two types of chain plates: stamping and welding. The combination of scale-like chain plates is closely overlapped, and there is less material leakage during operation. The upper and lower parts have reinforced steel structure, which has high bending strength and impact resistance, so as to improve the bearing capacity.

3. The driving device adopts suspension single-point floating support, and the tooth diameter matching is not affected by the basic accuracy, which can minimize the radial installation size of the Apron Plate Feeder.

Technical Reference Data

Model	Chain plate width (mm)	plate chain length (mm)	Maximum feed side length (mm)	Production capacity (t/h)	Chain speed (r/min)	Power (kw)	Weight (t)
XCBW8005	800	5000	≤400	50-150	0.05-0.2	7.5	13.8
XCBW1006	1000	6000	≤450	70-200	0.05-0.2	11	17.5
XCBW1008		8000				15	20
XCBW1010		10000				15	22.8
XCBW1013		13000				18.5	26.5
XCBW1206	1200	6000	≤650	120-280	0.05-0.2	18.5	21
XCBW1208		8000				18.5	23.8
XCBW1210		10000				22	25.6
XCBW1212		12000				22	28.5
XCBW1506	1500	6000	≤800	200-600	0.05-0.2	22	26.5
XCBW1508		8000				22	29.5
XCBW1513		13000				30	36.8
XCBW1608	1600	8000	≤850	220-680	0.05-0.2	37	31.3
XCBW1810	1800	10000	≤850	280-820	0.05-0.2	37	38.6
XCBW2008	2000	8000	≤1000	330-980	0.05-0.2	45	42.8
